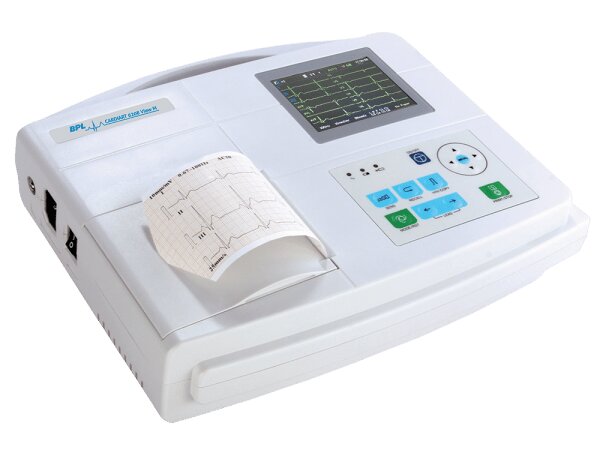

CARDIART 6208 View (3-channel ECG)

Features

Three-Channel ECG Recording

3.5 Inch Color LCD Screen

Automatic Measurement And Interpretation

≥12-bit A/D converter, 0.05 – 150 Hz bandwidth, 1000 Hz sampling frequency

Internal storage for up to 500 ECGs that can be enlarged by USB

High performance Li-ion rechargeable battery

Report formats: PDF and optional SCP/FDA-XML/DICOM

Connectivity: FTP, supports barcode scanner & USB Printer

Optional: PC interface software

Estimated Delivery Time:_5 to 7 Working Days

Specifications

BrandBPL

Description of product

Cardiart 6208 View

A three-channel ECG system with auto summary and colour LCD screen displaying clear output. With simultaneous acquisition of 12 leads, Cardiart 6208 View measures and interprets the readings with built-in ECG parameters. Experience fast, simple ECG process & an improved diagnosis.

Features

Three-channel ECG recording

3.5 inch color LCD screen

Automatic measurement and interpretation

≥12-bit A/D converter, 0.05 – 150 Hz bandwidth, 1000 Hz sampling frequency

Internal storage for up to 500 ECGs that can be enlarged by USB

High performance Li-ion rechargeable battery

Report formats: PDF and optional SCP/FDA-XML/DICOM

Connectivity: FTP, supports barcode scanner & USB Printer

Optional: PC interface software

Product Specifications

GeneralDisplay

Size & Resolution 3.5" Monochrome 320x240 pixels LCD screen

Power SupplyPower

Supply Range AC 100V-115V/220V-240V ± 10%, 50/60Hz

Power Consumption

Battery Rechargeable Li-ion battery (2200mAH)

Battery CapacityI n 3-channel mode, it can work about 6.5 hours. It can continuously record about 3 hours in Manual mode, and record 330 reports at most in the AUTO mode.

Battery Charging Indicatoion Yes

Battery Low Indication Yes

Recharging Time Approximately 5 Hours for 100% charging

Mains Protection Fuse: T400mA 250V Ø5×20 / T200mA 250V Ø5×20

EnvironmentalOperating Temperature 5o to 40o C

Relative Humidity 25 to 80% non condensin

gStandardsSafety Standard Compliant to Class I type CF, IEC-60601-1 and 60601-2-25 standards

EMC IEC-60601-1-2

Others

Dimension 300mm (L) x 260mm (W) x 85mm (H)

Weight 2.5Kgs.

ECGECG Acquisition 12 bits; 1000 samples/sec/channel

ECG Leads Standard 12 leads; acquired 12 leads

Recording Sensitivity Filters DFT Filter: 0.05Hz / 0.15Hz / 0.25Hz / 0.32Hz / 0.5Hz / 0.67Hz EMG Filter: 25Hz / 35Hz / 45Hz / OFFLOWPASS Filter:150Hz / 100Hz / 75Hz

Signal Memory2 .5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV, AGC

Operating Modes Manual - acquisition and printing in real time ; Auto - simultaneous acquisition

Parameter Calculation Yes, in auto mode (selectable)

Keyboard Tactile keypad with 9 function keys and LED function indicatorsI

nternal Memory 200 ECGs

\Input Dynamics ± 500mV @ 0 Hz; ± 5mV in the pass band

Input Impedance >=50M Ω

Frequency Response 0.05 Hz to 150 Hz (-3dB) without mains/muscle filters

Time Constant >3.2 seconds

CMRR >110dB

DF Protection Internal

Printe

Recording System Thermal dot matrix printer, 72mm usable print width

Thermal Paper In rolls: Height 80mm, Length 20m, gridded

Print Channel 3

Paper Transport Speed 5/6.25/10/12.5/25/50mm/sec (+ 3%)

USB Port Select HP printer only

Standerd Accessories

Patient Cable1 no.

Limb Electrodes4 nos

.Paper Roll1 no

.Accesory Bag1 no.

Battery Charger1 no.

Chest Electrodes6 no.

Gel Bottle1 no.

User Manual1 no.
