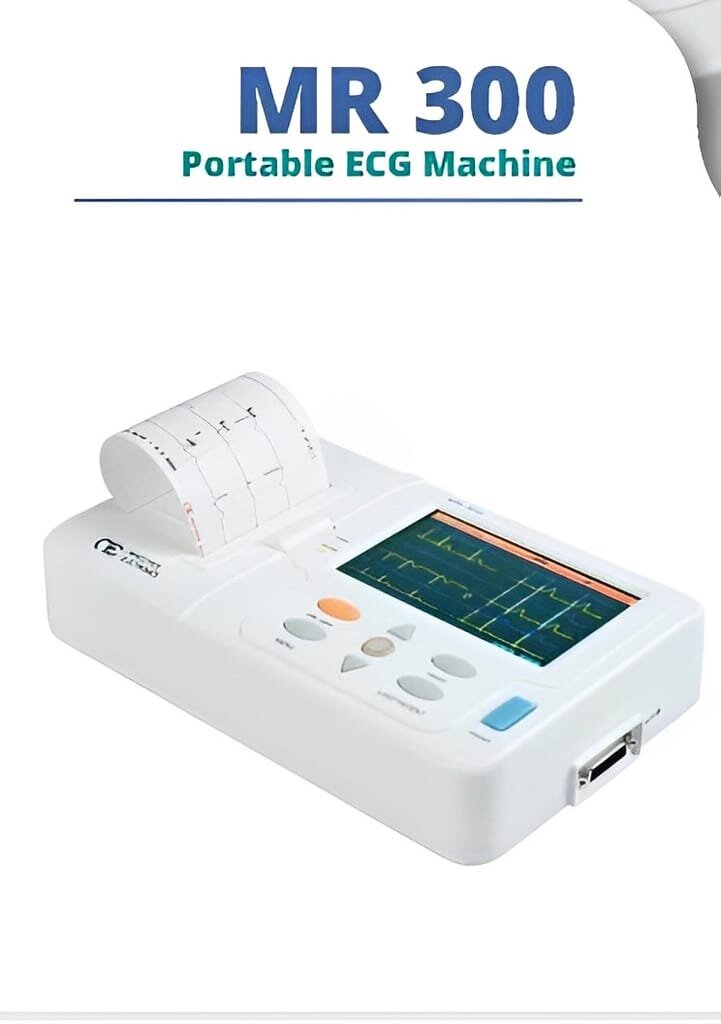

MR 300 Portable ECG Machine

MR 300 Portable ECG Machine

Compact 3-Channel ECG with Full-Featured Diagnostics & Connectivity

The MR 300 Portable ECG Machine by Maestros Electronics delivers advanced cardiac monitoring in a lightweight, portable design. Equipped with a vibrant 5” Color TFT Display, it enables 12-lead simultaneous acquisition, providing accurate and reliable ECG recordings.

Its built-in 3-inch thermal array printer allows instant high-quality printouts, while ECG measurement & interpretation capabilities simplify clinical evaluations. With PC connectivity via USB memory and unlimited data storage via USB stick, MR 300 ensures flexible data management for busy clinics and hospitals.

Optional Cloud Server Connectivity (BT/GSM) further expands remote access capabilities, making this compact machine a powerful tool for telemedicine and modern healthcare environments.

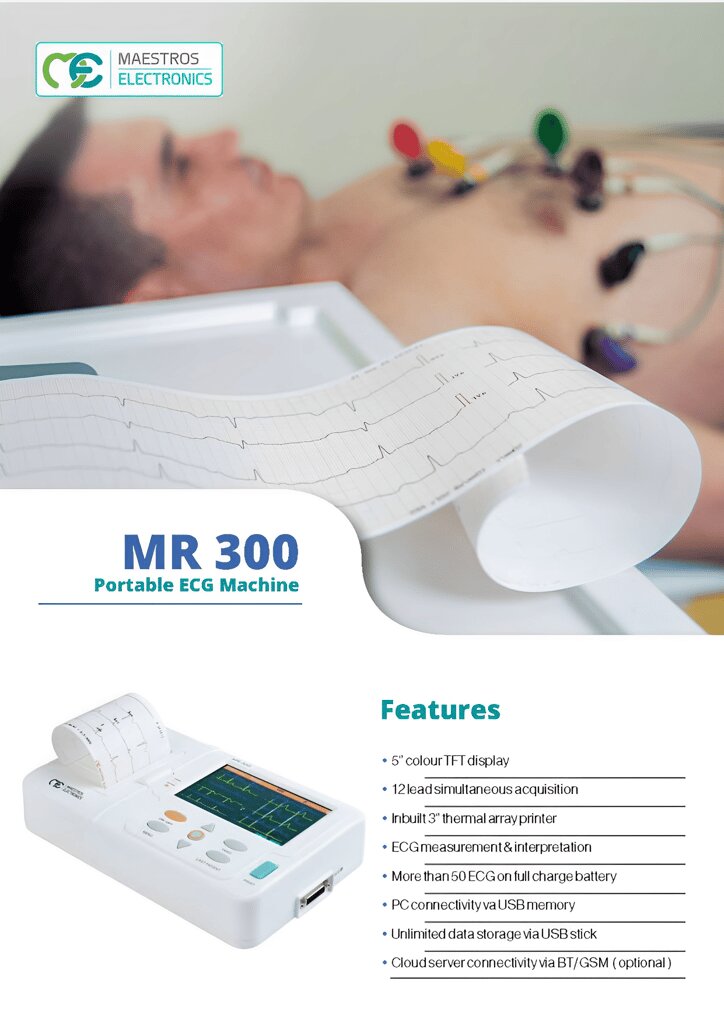

Key Features:

• 3-channel portable ECG machine with compact design.
• 5” Color TFT Display (800 x 480 pixels) for clear visualization.
• 12-lead simultaneous acquisition for comprehensive diagnostics.
• Built-in 3” thermal array printer for immediate report generation.
• ECG measurement & interpretation functions for accurate analysis.
• USB connectivity with unlimited data storage via memory stick.
• Cloud Server Connectivity via BT/GSM (Optional) for remote data access.
• Lightweight (850 gm) and portable for bedside or field use.

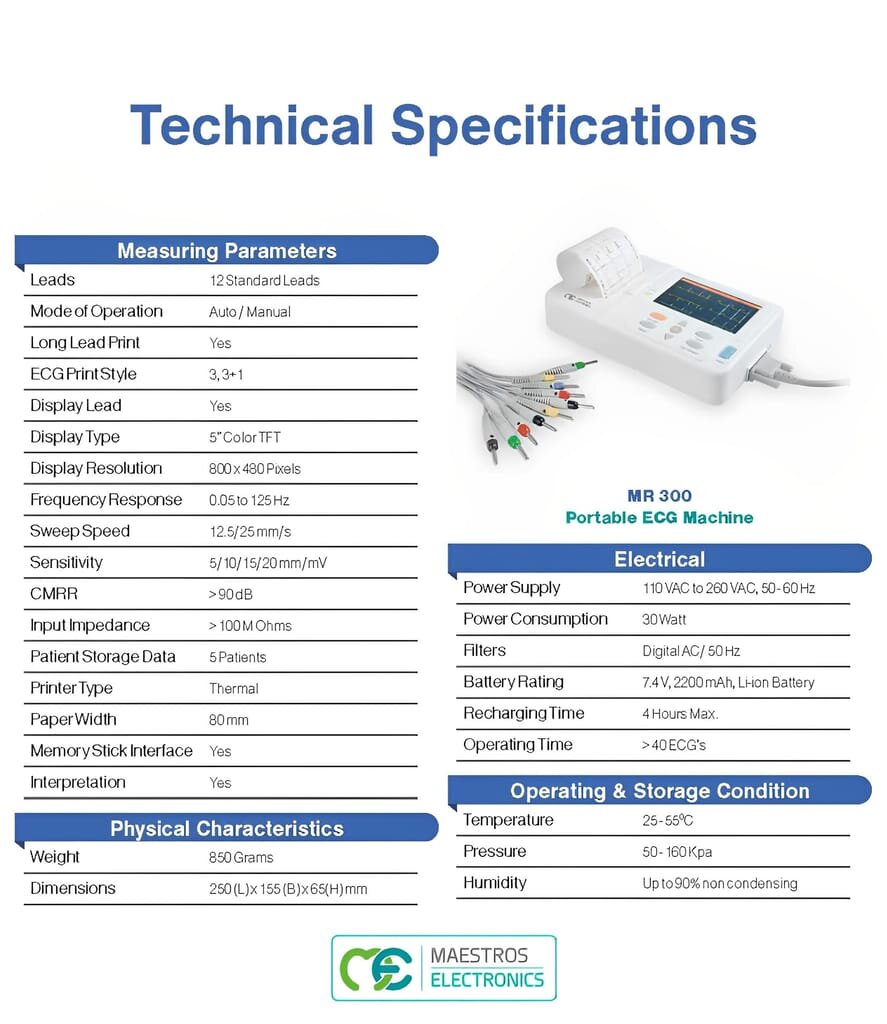

Technical Highlights:

• Frequency Response: 0.05 to 125 Hz
• Sensitivity: 5/10/15/20 mm/mV
• Sweep Speed: 12.5 / 25 mm/s
• Patient Data Storage: 5 patients
• Printer Type: Thermal, 80 mm width
• Battery: 7.4V, 2200 mAh Li-ion, >40 ECGs per charge
• Weight: 850 gm
• Dimensions: 250 x 156 x 65 mm

The MR 300 is ideal for clinics, hospitals, and mobile healthcare services, delivering professional-grade ECG recording with maximum portability and versatility.
