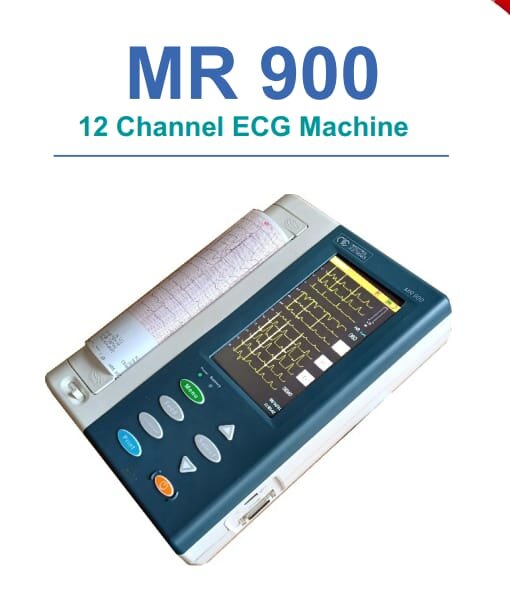

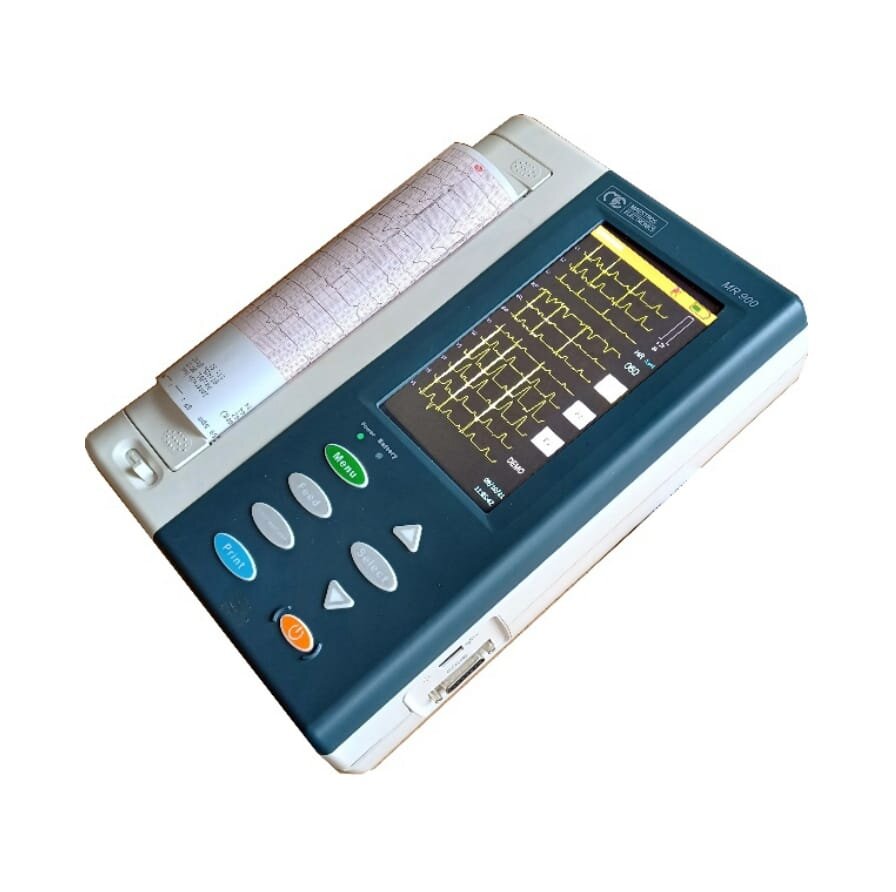

MR 900 12-Channel ECG Machine

MR 900 12-Channel ECG Machine

Advanced 12-Channel ECG with Full A4 Printing & Cloud Connectivity

The MR 900 12-Channel ECG Machine by Maestros Electronics is a state-of-the-art portable ECG system designed to deliver high-quality diagnostics with superior ease of use. Equipped with a large 5” Color TFT Touchscreen Display, this machine allows for quick patient data input and real-time monitoring.

With A4 size 12-channel ECG printing, customizable report formats, and advanced ECG measurement & interpretation capabilities, MR 900 ensures comprehensive cardiac evaluation. Its cloud server connectivity via Bluetooth or GSM makes remote data access and storage highly efficient, enhancing telemedicine capabilities.

The device supports PC & memory stick downloads, long lead printing, and stores up to 25 patient records internally, offering flexibility for both clinic and hospital environments.

Key Features:

• 12-channel A4 ECG printing with high-resolution thermal printer.
• 5” Color TFT Touchscreen Display (800 x 480 pixels) for easy navigation.
• ECG Measurement & Interpretation for fast and accurate diagnosis.
• Patient data input directly via touchscreen.
• Multiple printing formats configurable as per requirement.
• PC & USB memory stick connectivity for data transfer.
• Cloud Server Connectivity via BT/GSM for remote data management.
• Portable design with over 50 ECGs on full battery charge.

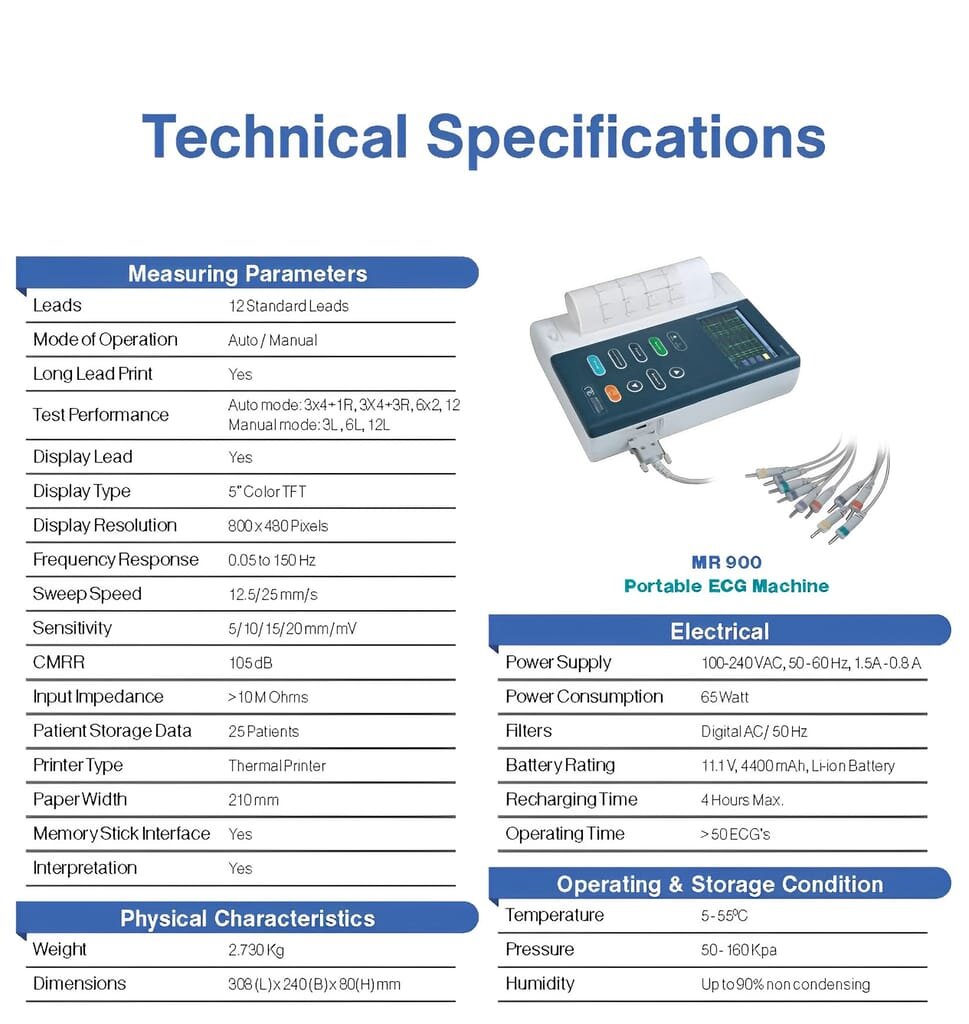

Technical Highlights:

• Frequency Response: 0.05 to 150 Hz
• Sensitivity: 5/10/15/20 mm/mV
• Sweep Speed: 12.5 / 25 mm/s
• Patient Data Storage: 25 patients
• Printer Type: Thermal, 210 mm wide
• Battery: 11.1V, 4400 mAh Li-ion, >50 ECGs per charge
• Weight: 2.73 kg
• Dimensions: 308 x 240 x 80 mm

The MR 900 12-Channel ECG Machine combines modern technology, portability, and user-friendly interface to deliver reliable cardiac diagnostics in any clinical setting.
