CARDIART 9108 - 12 Channel ECG

CARDIART 9108 - 12 Channel ECG

Reliable, Accurate, and User-Friendly ECG Recording for Advanced Cardiac Diagnostics

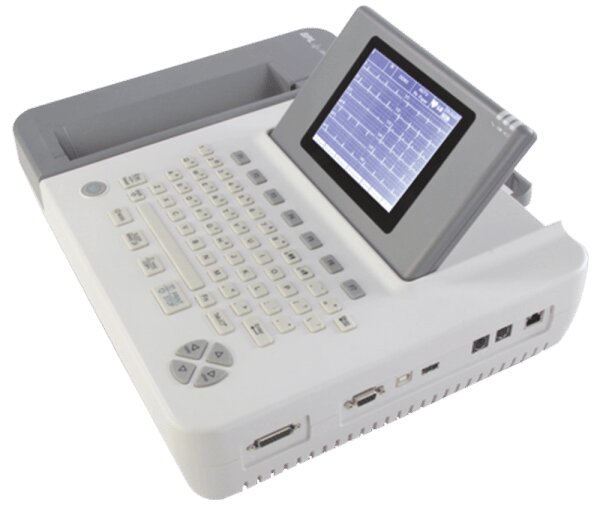

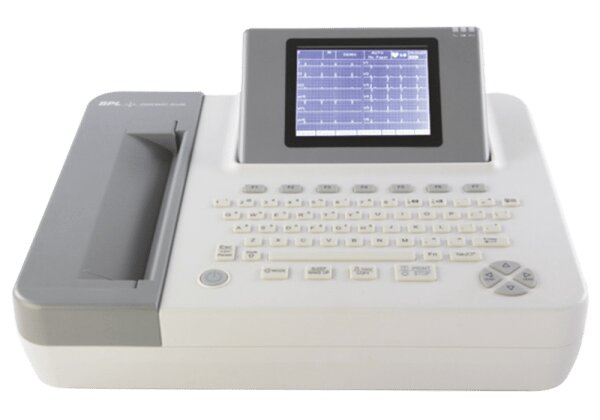

The BPL Cardiart 9108 is a high-performance 12-Channel ECG machine, designed to deliver precise measurements with advanced interpretation capability. With its foldable 5.7-inch LCD screen, automatic parameter measurement, and multiple connectivity options, it ensures efficient and comprehensive cardiac assessment for hospitals, clinics, and diagnostic centers.

Key Features:

• 12-Channel ECG Recording: Simultaneous 12-lead capture ensures comprehensive heart assessment.
• 5.7-Inch High-Resolution Foldable LCD Display: Compact design with easy viewing and portability.
• Automatic Measurement & Interpretation: Built-in algorithms for fast and accurate analysis.
• 24-bit A/D Converter with 16000 Hz Sampling Frequency: High fidelity ECG signal acquisition.
• Wide Bandwidth (0.01 - 300 Hz): Captures even the finest cardiac signals for detailed analysis.
• Internal Storage Capacity: Save up to 800 ECG recordings, expandable via USB.
• Rechargeable Li-ion Battery: Operates independently from mains power for up to 4 hours.
• Multiple Report Formats: Export ECG reports as PDF, SCP, FDA-XML, or DICOM formats.
• Advanced Connectivity: Ethernet, RS232, USB, FTP, optional Wi-Fi and barcode scanner support.
• PC Interface Software (Optional): Integrate with EMR/PACs/GDT-based systems using HL7 protocol.

Advanced Functionalities:

• Simultaneous real-time 12-lead recording.
• QWERTY keyboard for quick data entry.
• Arrhythmia detection with pre-sample, real-time, period sample, and trigger sample modes.
• Pacemaker detection for patients with implanted devices.
• Multiple print modes for customized reporting.
• External USB printer compatibility.
• Optional trolley mount for easy movement inside clinical settings.
• Smart-View Software for seamless PC interface and patient data management.

Technical Specifications:

Display & Storage:

• Display: 5.7-Inch Foldable Color LCD Display
• Internal Storage: Up to 800 ECGs
• External Storage: USB drive support

Acquisition & Processing:

• Leads: 12 Standard Leads
• Acquisition Mode: Simultaneous 12-Lead
• A/D Conversion: 24-bit
• Resolution: 2.52 µV/LSB
• Frequency Response: 0.05 Hz – 150 Hz (-3dB)
• Sampling Frequency: 16,000 Hz/channel
• Heart Rate Range: 30 – 300 bpm

Connectivity:

• Ethernet, RS232, USB
• FTP, Barcode Scanner, USB Printer
• Optional Wi-Fi Module
• Optional EMR Integration via HL7

Power & Battery:

• Power Supply: 100V-240V AC, 50/60 Hz
• Battery: 14.8V Li-Ion, 2500 mAh
• Battery Life: 4 hours of operation; 1.5 hours continuous printing or 300 ECGs in auto mode

Physical Dimensions:

• Size: 420mm x 330mm x 105mm
• Weight: Approx. 5.0 kg (excluding recorder paper and battery)

Environmental Conditions:

• Operating Temperature: +5°C to +40°C
• Storage Temperature: -20°C to +55°C
• Humidity: 25% – 93% (non-condensing)

Standard Accessories:

• Patient Cable: 1 unit
• Chest Electrodes: 6 units
• Limb Electrodes: 4 units
• Power Cord: 1 unit
• Cardi-Jelly: 1 unit
• Paper Roll: 1 unit
• User Manual: 1 unit

Applications:

• Hospitals & ICUs
• Cardiology Clinics
• Corporate Health Checkups
• Preoperative & Postoperative Monitoring
• General Diagnostic Centers

The CARDIART 9108 from BPL combines advanced technology with user-friendly design, making it an ideal choice for any healthcare facility that demands reliable, efficient, and accurate ECG recording with interpretation.
