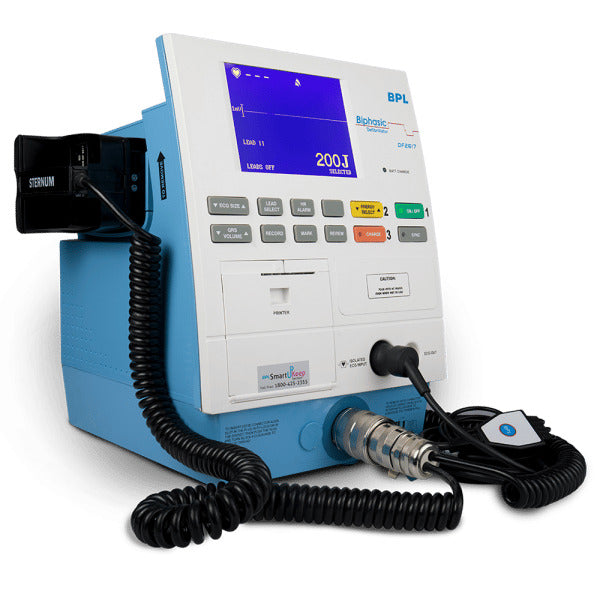

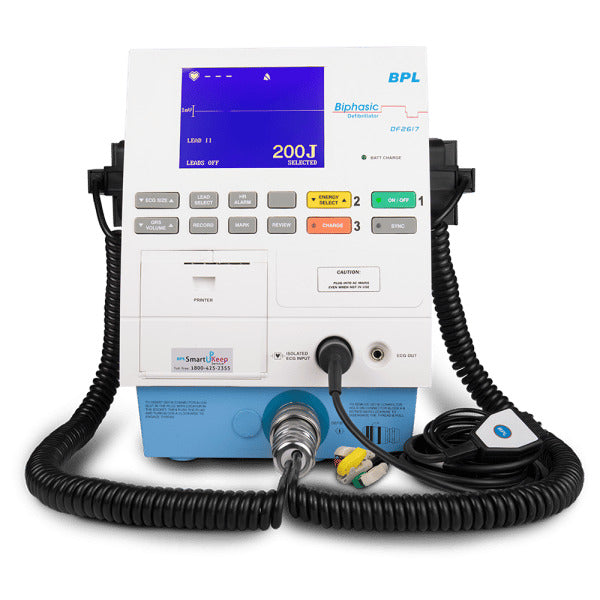

DEFIBRILLATOR DF 2617/R

The DF-2617 defibrillator is designed for both manual and AED modes. With an easy-to-use interface, it minimizes the time required to deliver life-saving shocks to patients experiencing sudden cardiac arrest.

Key Features:

• Bi-Phasic Defibrillator

• 5.7-Inch LCD Screen for crisp and accurate readings

• User-Selectable Energy Levels: 2J to 300J in manual mode

• Optional AED Mode with voice prompt & metronome signal for CPR support

• Synchronized Cardioversion

• Remote Energy Selection and Charging via Paddles

• 24 Events Recording

• Minimum 100 Discharges of 300J with fully charged new battery

• Noiseless Thermal Printing (optional)

• 1-2-3 Operation: Easy step-by-step usage

• High Energy Efficiency: 100 charges/discharges at 300J

Advanced Features:

• Biphasic Waveform: Adjusts for patient impedance

• Guided CPR: Step-by-step voice instructions

• Selectable Energy Protocols

• Remote Charging and Disarming Through Paddles

• Charge Done LED and Tone Indicators

• Freeze ECG Display Function (Models without Recorder)

Monitor & Display:

• Display Size: 5.7” STN LCD

• Sweep Speed: 25 ± 1 mm/sec

• ECG Input Modes: Through paddles or 3-lead patient cable

• User Gain Settings: 8 levels (x0.25 to x4.0)

• Heart Rate Range: 10 to 300 BPM

• Heart Rate Alarms: Configurable (20–300 BPM)

• QRS & Alarm Tone: User adjustable

AED Mode (DF 2617 AED/R only):

• Energy Levels: Lo=200J, Hi=300J (programmable)

• Waveform: Current-controlled Biphasic

• Voice & Display Prompts

• AED Mode Toggle Button

Technical Specifications:

• AC Input: 100 – 230 V AC ±15%, 50/60 Hz

• Power Consumption: < 70 VA

• Battery Type: Rechargeable Sealed Lead Acid (12V, 4.5AH)

• Battery Capacity: 100+ discharges at 300J

• Battery Charging Time: ~3 hrs to 90%, ~18 hrs to 100%

• Weight: < 10.5 Kg (with battery and paddles)

• Dimensions: 260mm (W) x 280mm (D) x 250mm (H)

Environmental Conditions:

• Operating Temp: 0°C to 40°C

• Storage Temp: -10°C to 60/70°C

• Humidity: 15–95% (non-condensing)

Standards & Protection:

• Classification: Class I (IEC 60601-1)

• ECG Input: Type CF

• Paddle Input: Type BF

Printer (Optional):

• Paper Speed: 25 mm/sec

• Print Width: 40mm

• Paper Type: Thermal roll, 50mm wide

• Recording: Stores 24 events (3 sec before & 7 sec after critical event)

• Print Data: Time, Date, HR, ECG Source, Gain, Energy, Patient Impedance, etc.

Standard Accessories:

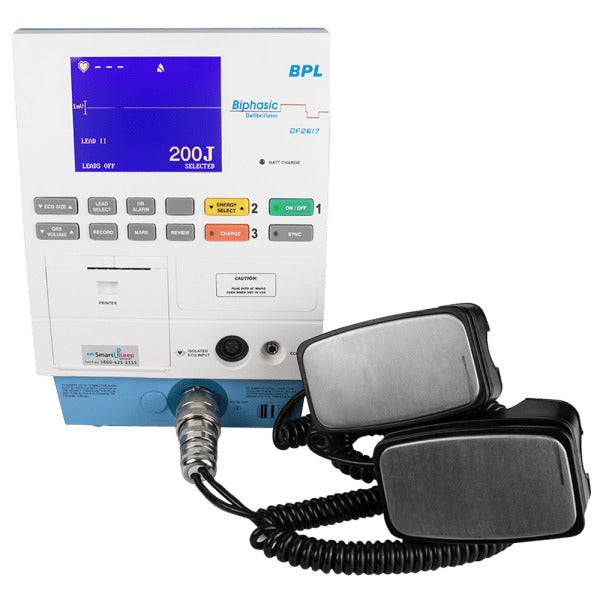

• Adult & Pediatric Paddles (1 set)

• Disposable Electrodes (1 pkt)

• Power Cord (1 unit)

• Accessory Bag (1 unit)

• Cardijelly (1 unit)

• Patient Cable (1 unit)

• User Manual (1 unit)

• 20M Recording Paper Roll (1 unit)

Estimated Delivery Time: 5 to 7 Working Days
