IRC - Non-Invasive & Non-Surgical Treatment for Piles & Other Diseases by Infrared Coagulation

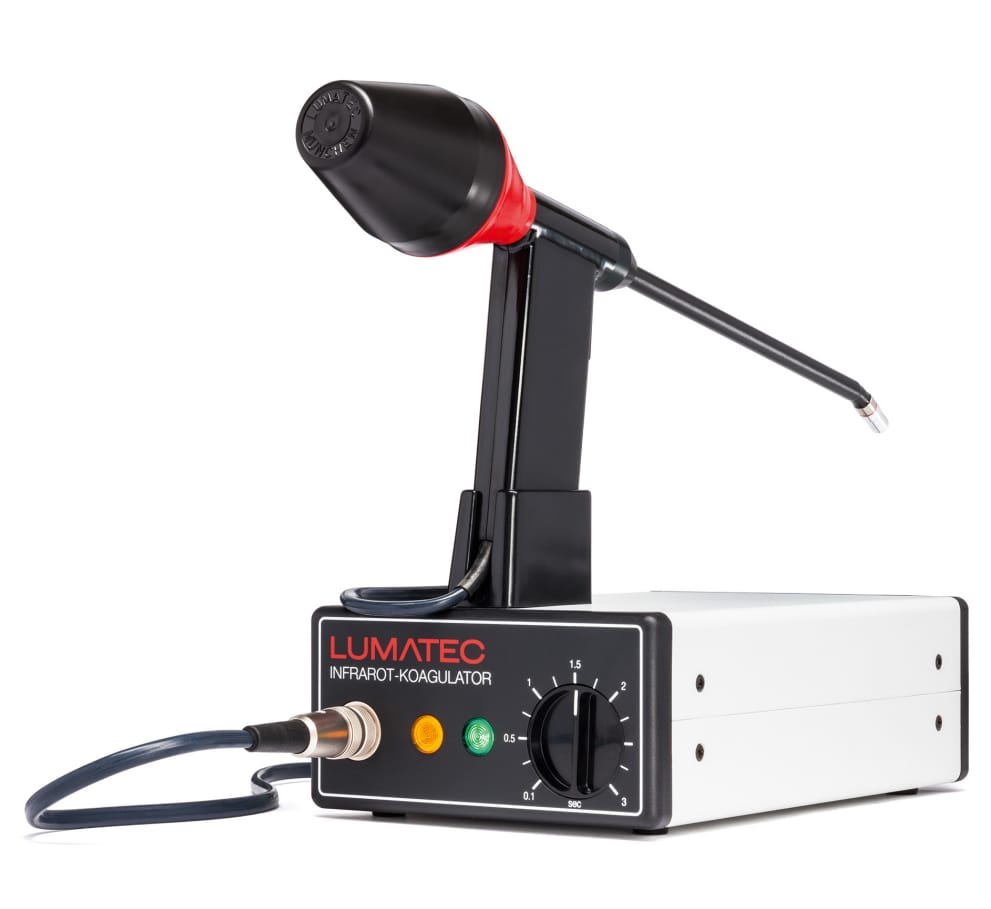

IRC - Infrared Coagulation Device for Non-Invasive Piles & Other Disease Treatments

Product Description

• Non-invasive and non-surgical treatment using infrared coagulation.
• Safely treats piles (haemorrhoids), gynecological, dermatological, ENT, and other conditions.
• Offers precise coagulation with controlled penetration depth.
• Far simpler, safer, and more effective than injections or other invasive procedures.

Key Features

• Precisely controlled penetration depth and intensity.
• Coagulation completed within 1 to 3 seconds.
• Anti-adhesive: Tissue does not stick to the instrument.
• Precisely adjustable depth of necrosis.

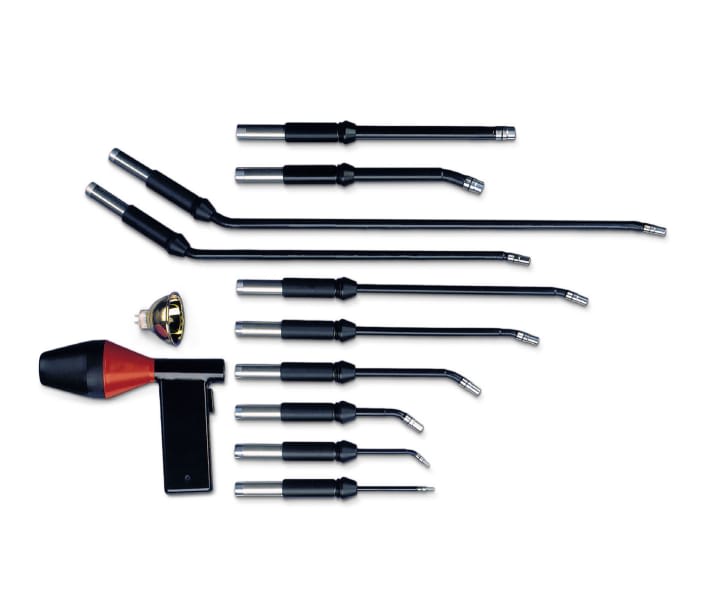

• Interchangeable light guides available in multiple gauges.
• Low voltage (15V), ensuring zero risk of bowel gas explosions.
• Safe for patients with cardiac pacemakers.
• Suitable for use during pregnancy.
• No return electrode required.
• No hospital stay, anaesthesia, surgery, pain, or blood loss.
• Immediate return to normal work and routine activities.
• Economical and highly safe even for diabetic patients.

Typical Medical Applications

• Haemorrhoids
• Gynaecology
• ENT (Ear, Nose, Throat)
• Cervical Erosions
• Polyps
• Dermatology
• Dentistry
• Condylomas
• Haemangioma

Technical Specifications

• Power Supply: 100 / 120 / 230 VAC
• Frequency: 50/60 Hz
• Power Consumption: 240 VA
• Protective Class: I (VDE 0750 / IEC 601/1)
• Weight: Approx. 2.4 kg
• Lamp Voltage: 15V / Lamp Power: 150W
• Light Guide Diameters: Ø 2 mm to Ø 10 mm
• Optical Output:
• Ø 2 mm: 3 – 4 W
• Ø 6 mm: 22 – 29 W
• Ø 10 mm: 42 – 49 W
• Spectrum: 360 – 2500 nm (Maximum at 900 nm)
• Operating Temperature: +5°C to +35°C
• Storage Temperature: -15°C to +50°C
• Humidity: < 80%
• Note: Not to be operated in explosion-prone areas.

Advantages

• Non-Invasive
• No Hospitalization
• No Anaesthesia or Surgery
• No Pain or Blood Loss
• Safe for Diabetics & Pregnant Women
• Economical & Quick Recovery
