SYRINGE INFUSION PUMP ACURA S1

Features

Dual Display: 2.8-inch color LCD & LED for rate display

Compatible with all standard syringes: 5ml – 60ml

Infusion Modes: Rate Mode, Time Mode and Drug/Weight Mode

In-built Drug Library

Dual Bolus Modes: Manual & Automatic bolus

3 level occlusion sensitivities setting (programmable)

2000 history records and last configuration memory

Horizontal & Vertical fixation clamp

Estimated Delivery Time:_5 to 7 Working Days

Specifications

Brand -  BPL

Description of product

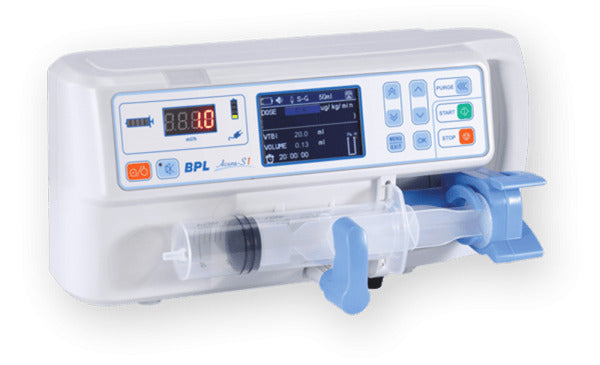

SYRINGE INFUSION PUMP ACURA S1

Acura S1 is full featured syringe infusion pump, designed to facilitate comprehensive solution for critical care and general infusion applications.

Infusion Modes: Rate mode, Time mode and Drug/Weight mode.

Features

Color Display

High definition 2.8” Color LCD with infusion rate display

In-built Drug Librar

The device comes with an in-built drug library

Multiple Infusion Modes

In-built Flow rate, Time/volume, Dosage/Weight, Infusion modes

Double CPU

Double CPU ensures safety and reliability of infusion

Bolus Modes

Dual bolus: Automatic and Manual along with Anti-Bolus function

Device Memory

2000 history records and last configuration memory

Automatic Syringe Calibration

Calibrated for all standard syringe brands of 5ml, 10ml, 20ml, 30ml & 50/60ml

Pressure Detection

3 level occlusion sensitivities setting (programmable) with picture representation

Alarms

Audio and visual alarms for alerts

Fixing Clamp

Vertical & Horizontal rotatable fixation clamp

Technical Specifications

Display

2.8 inch Color LCD

Syringes

5ml, 10ml, 20ml, 30ml & 50/60ml.

Infusion Modes

Rate Mode, Time Mode and Drug/Weight Mode

Time/Volume Mode

Volume: 9999.9ml,

Time: 99:59:59

Drug/weight Mode

Body weight: 0.1-300 kg

Drug Amount 0.01ug-999g

Solution Volume�0.1-999.9 ml

Dose: 0.01-99.99 (subject to the unit)

Flow Rate Range

5ml : 0.1ml/h-150ml/h; 10ml : 0.1ml/h-300ml/h; 20ml : 0.1ml/h-600ml/h 30ml : 0.1ml/h-900ml/h; 50ml/60 ml : 0.1ml/h-1200ml/h

Flow Rate Step

0.1ml/h

Flow Rate Accuracy

within ±2%

Volume Limit

0.1-9999.9 ml

BOLUS Rate

5ml : 10ml/h-150ml/h; 10ml : 10ml/h-300ml/h; 20ml : 10ml/h-600ml/h; 30ml : 10ml/h-900ml/h; 50ml/60ml : 10ml/h-1200ml/h

BOLUS Accuracy

≤±2% (after calibration)

Purge Rate

5ml : 150ml/h; 10ml : 300ml/h; 20ml : 600ml/h;

30ml : 900ml/h; 50ml/60ml : 1200ml/h

KVO

0.1-5ml/h (after injection)

Occlusion Level

3-level Sensitivities Setting

Audio & Visual Alarm

Clamp Err, Putter Err, Finished KVO, Near Empty, EMPTY, Occlusion Low Battery, Power OFF etc.

Power Supply

100V-240V AC，50Hz/60Hz

Battery Type

Internal rechargeable Ni-MH DC12V 2000mAh

Battery Backup

8 hours at 5ml/hr after fully recharged

Classification

Class I, CF, IPX2

Dimensions

305mm(L) X 130mm(B) X 108mm(H) (handgrip and clamp excluded)

Weight

1.9Kg Approx

Operational Conditions

Temperature: +5˚C - +40˚C

Relative Humidity ≤80%

Atmospheric Pressure 70KPa - 106Kpa

Storage & Transportation Conditions

Temperature: -22˚C - +55˚C

Relative Humidity : 10% - 90%

Atmospheric Pressure 70KPa - 106Kpa
