VOLUMETRIC PUMP ACURA V1
Enquiry Submitted!
Offer Negotiation
Secure your preferred price with a 20% deposit
Payment Successful!

VOLUMETRIC PUMP ACURA V1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability



Description
Description

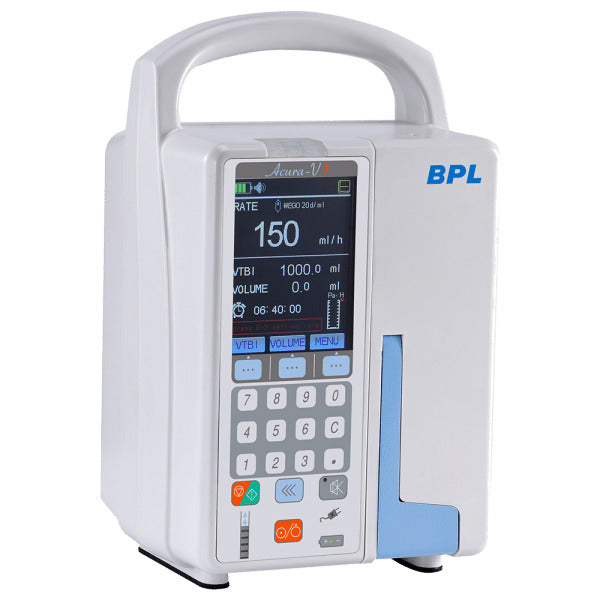

Volumetric Pump Acura V1 (BPL)
Precise, Reliable & Versatile Infusion Therapy for Critical Care
The BPL Acura V1 Volumetric Infusion Pump is engineered for high-accuracy infusion delivery, ensuring patient safety in critical care and general infusion scenarios. Equipped with advanced technology, multiple infusion modes, and robust safety features, Acura V1 delivers exceptional performance in hospitals, ICUs, and specialty care units.
Key Features:
- High-Definition 3.2” Color TFT Display: User-friendly interface provides real-time monitoring of infusion parameters.
- Multiple Infusion Modes: Supports Rate Mode, Time Mode, Weight Mode, Stage Mode, and Drip Rate Mode for diverse clinical applications.
- In-built Drug Library: Allows precise medication management, minimizing errors in drug delivery.
- Dual CPU System: Double processor architecture ensures superior safety and reliable operation.
- Dual Bolus Modes: Manual and automatic bolus modes with Anti-Bolus function for controlled fluid delivery.
- 2000 History Records: Stores infusion history and last configuration memory, ensuring continuity of care.
- Automatic IV Set Calibration: Compatible with all standard IV infusion sets (20d/ml and 60d/ml).
- Programmable Pressure Detection: 3-level occlusion sensitivity settings with visual indicators for proactive safety monitoring.
- Bubble Detection System: Ultrasonic air bubble detection with 3-level sensitivity settings, minimizing risk of air embolism.
- Comprehensive Alarm System: Audio and visual alarms alert healthcare providers to any infusion interruptions or issues.
- Flexible Mounting Clamp: Rotatable horizontal and vertical fixation for easy installation on IV poles or stands.
Technical Specifications:
- Display: 3.2 inch Color TFT (240x320 Pixels)
- Infusion Sets: Standard IV sets (20d/ml & 60d/ml), tubing diameter 3.4–4.5mm
- Infusion Modes: Rate, Time, Drug/Weight, Stage Mode, Drip Rate Mode (optional)
- Flow Rate Range: 0.1 ml/h to 1200 ml/h (20d/ml IV set)
- Infusion Accuracy: ≤ ±5% (after calibration)
- Volume Limit: 1–9999 ml
- Bolus Rate:
- 20d/ml IV set: 10–1200 ml/h (default 600 ml/h)
- 60d/ml IV set: 10–150 ml/h (default 150 ml/h)
- Bolus Accuracy: ≤ ±5% (after calibration)
- Purge Rate: 600 ml/h (20d/ml), 150 ml/h (60d/ml)
- KVO (Keep Vein Open) Rate: 0.1–10 ml/h
- Bubble Detection: Ultrasonic, 3-level sensitivity, detection volume ≥ 0.025 ml
- Alarm Types: Door open, Air-in-Line, Occlusion, Low Battery, Power OFF, Sensor Error, Overflow, Motor Error, Communication Error, etc.
- Power Supply: 100V-240V AC, 50Hz/60Hz
- Battery: Rechargeable Ni-MH DC12V 2000mAh
- Battery Backup: 4 hours at 25 ml/h infusion rate
- Classification: Class I, CF, IPX2 compliant
- Dimensions: 167mm (L) x 125mm (B) x 115mm (H) (excluding handgrip and clamp)
- Weight: Approx. 1.8 kg
- Operating Temperature: +5°C to +40°C, Humidity ≤80%
- Storage Conditions: -22°C to +55°C, Humidity 10%–90%
Applications:
- ICU & Critical Care Units
- Emergency Departments
- Chemotherapy & Oncology Infusions
- Neonatal and Pediatric Care
- Long-Term Infusion Therapy
The BPL Acura V1 Volumetric Infusion Pump combines precision infusion control, comprehensive safety systems, and user-friendly operation to meet the demanding needs of modern healthcare environments.
